ViscoTwin Pumps SP VT Frame 4

Products > ViscoTwin Pumps > ViscoTwin Spare Parts > ViscoTwin Pumps Frame

SPARE PARTS, VT Frame #4 NOVEMBER 2021

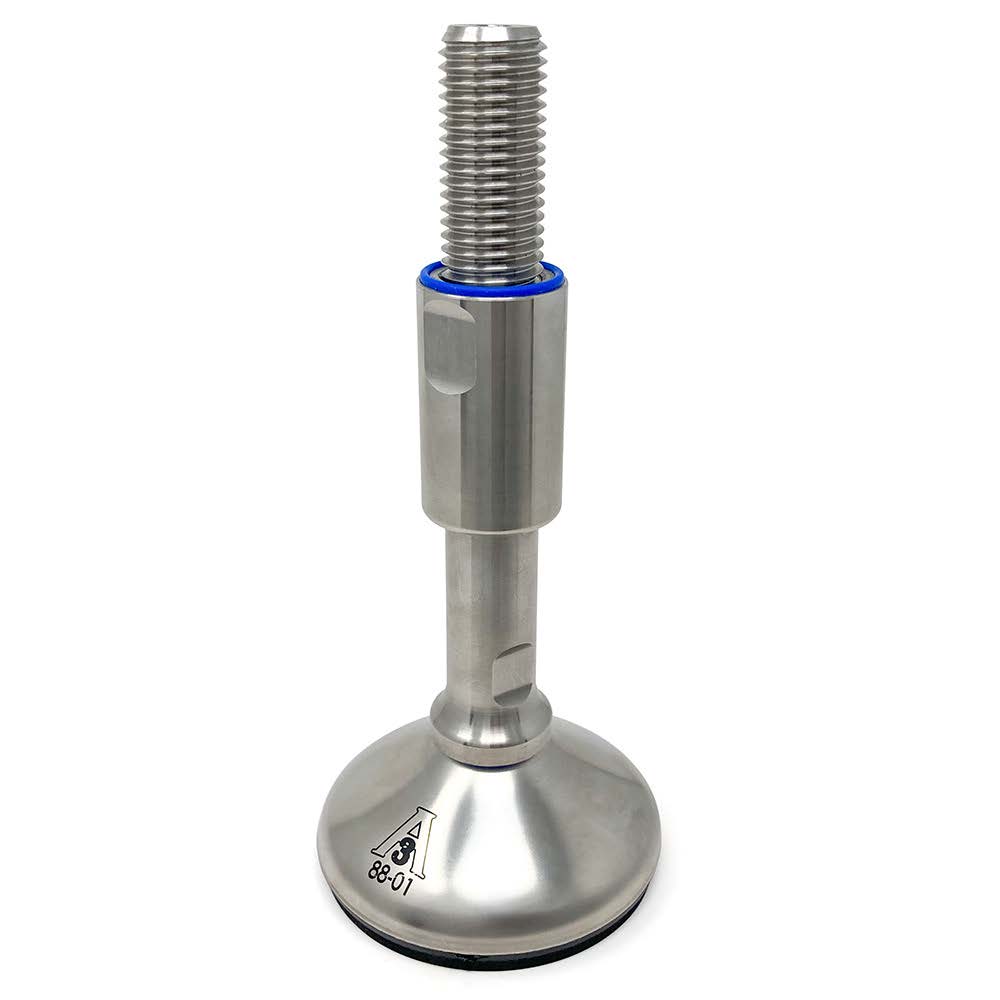

21557

Pump Leg_VT70, VT104, VT130_G7, G8, G9
Pos. 7777A
Material: 304
Specification / Size: Thread Size M 20-2.5, Max Height 145mm, Min Height 109mm, NGI LEG
Notes: --

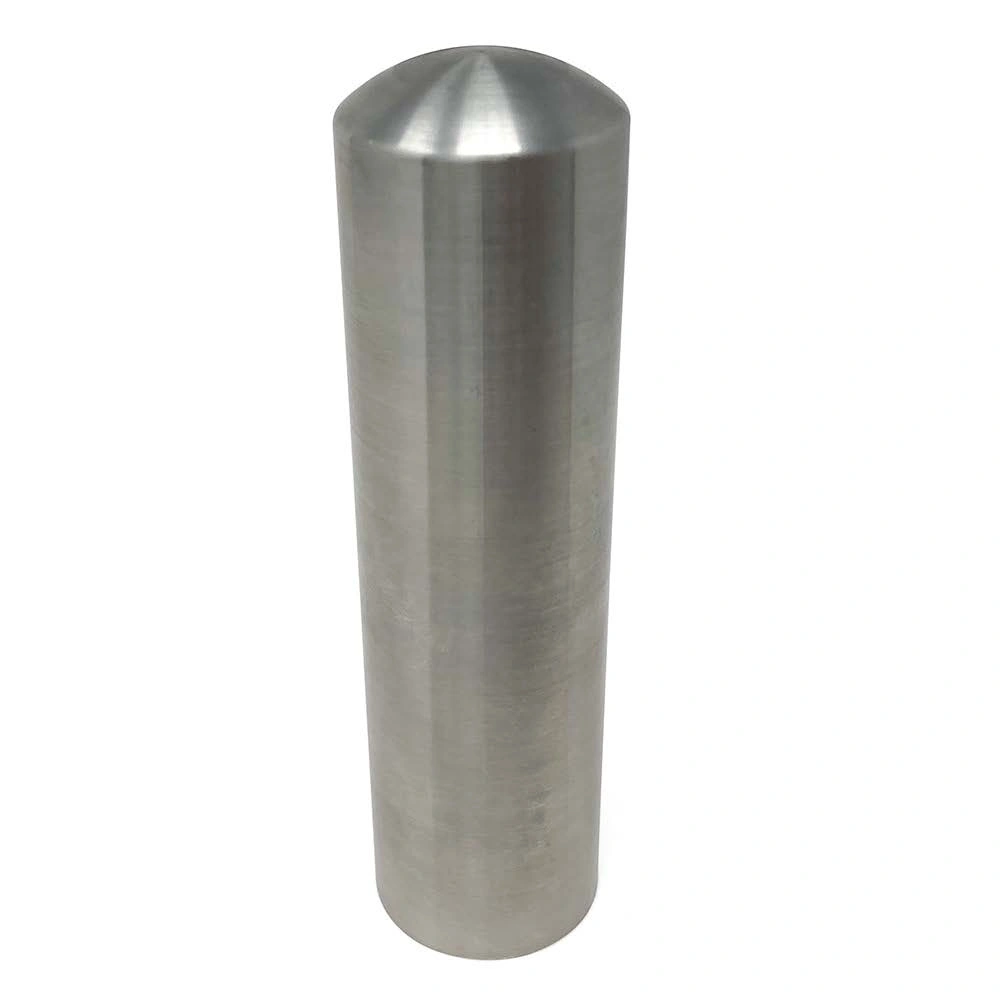

21558

Pump Leg Cap_VT70, VT104, VT130_G7, G8, G9
Pos. 7777B
Material: 304
Specification / Size: THOX Machine Foot Cap, FDA Mounting Leg Cover, NGI CAP
Notes: --

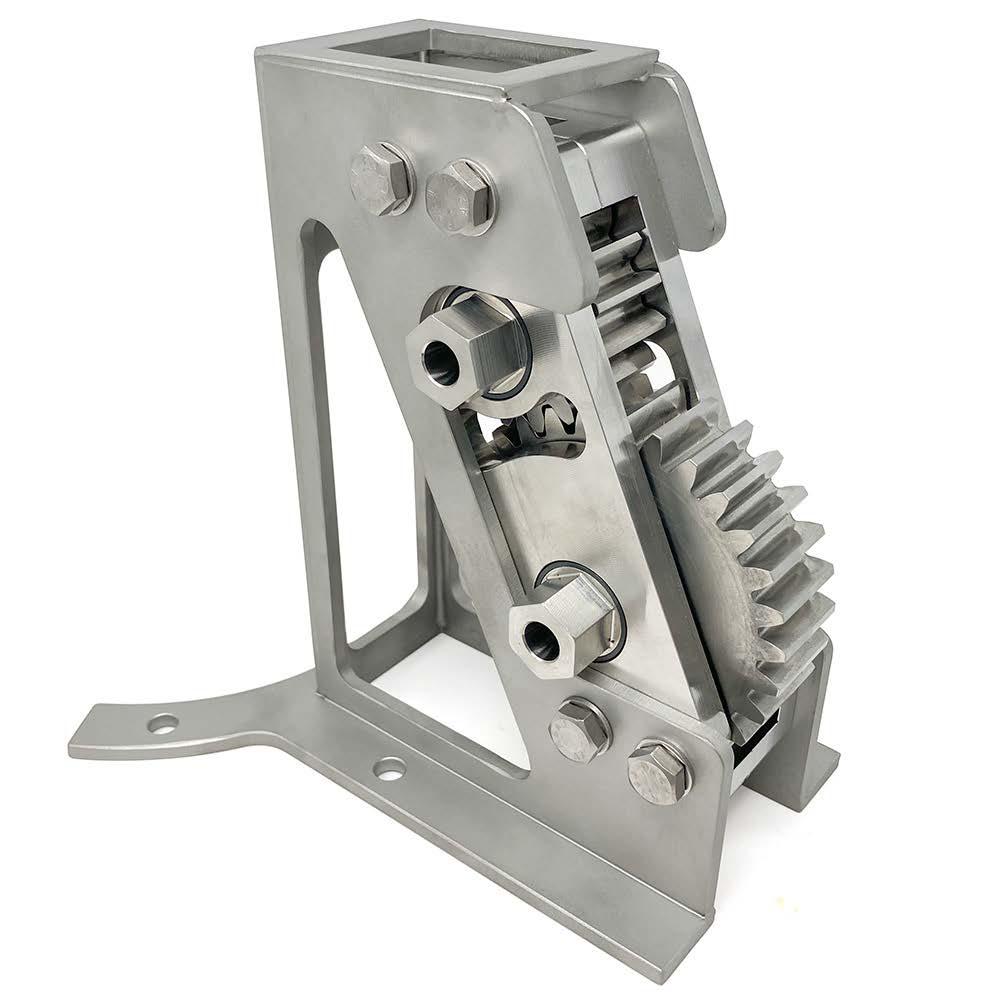

22365

Gearbox Frame4_Gear Console
Pos. 4410
Material: --
Specification / Size: Position 4404A for the Holder of Frame
Notes: --

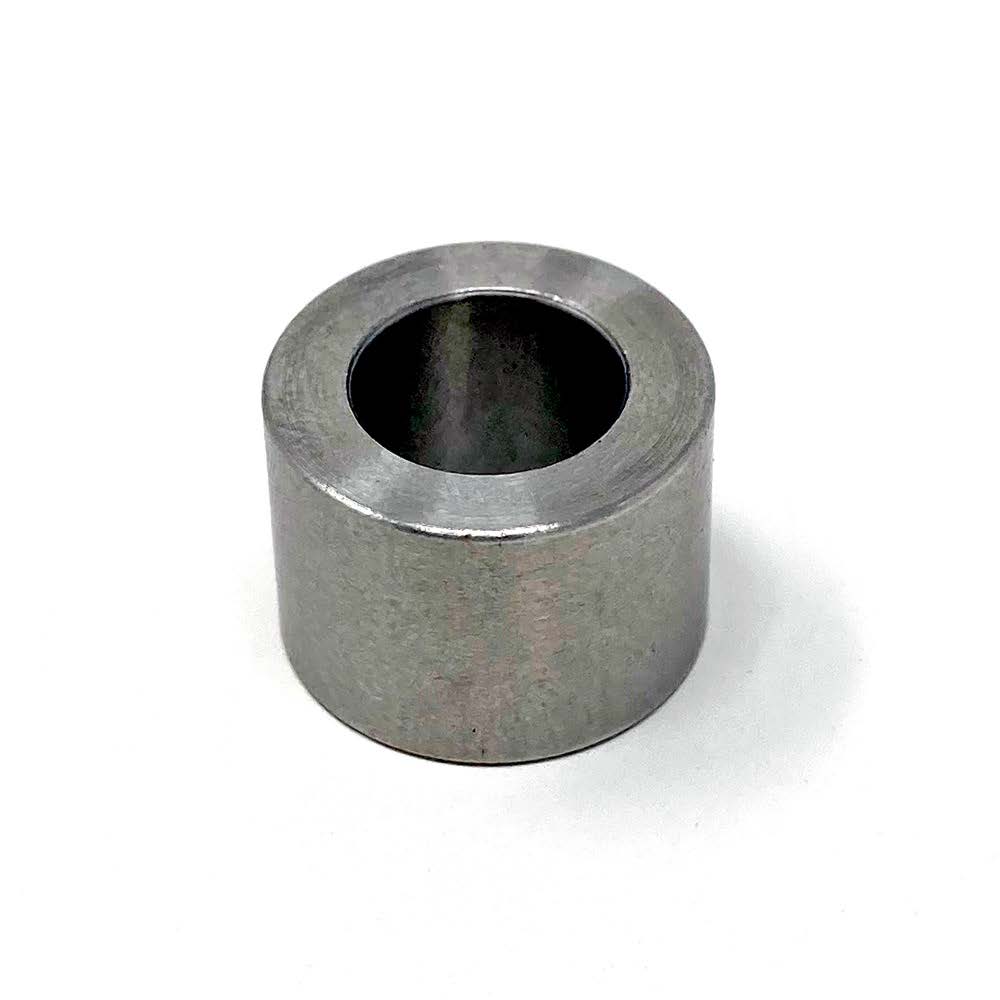

22214

Spacer Gearbox Frame4_Gear Console Spacer
Pos. 4410A
Material: 304
Specification / Size: 15mm
Notes: --

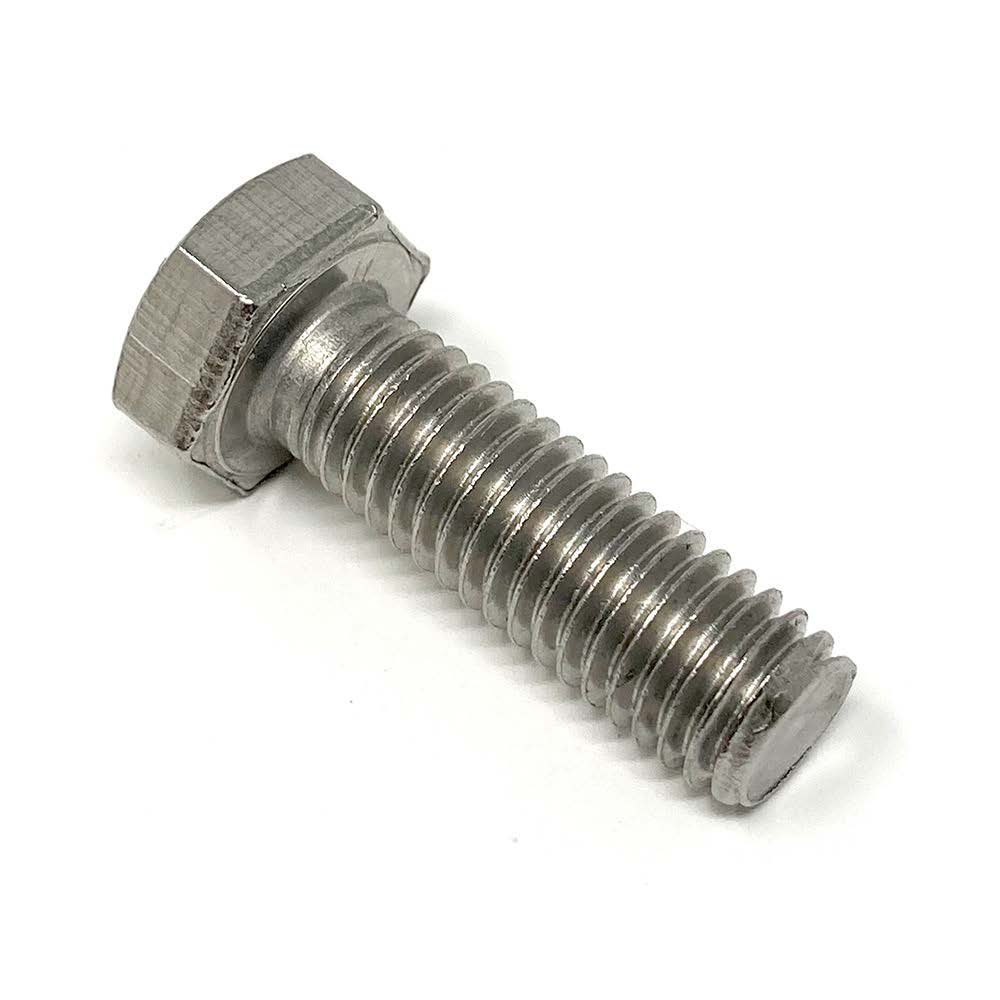

18554

Gear Console Hex Head Bolt_M8x1.25x25mm
Pos. 4410B
Material: 316
Specification / Size: M8x1.25mm, Hex Screw 25mm L
Notes: --

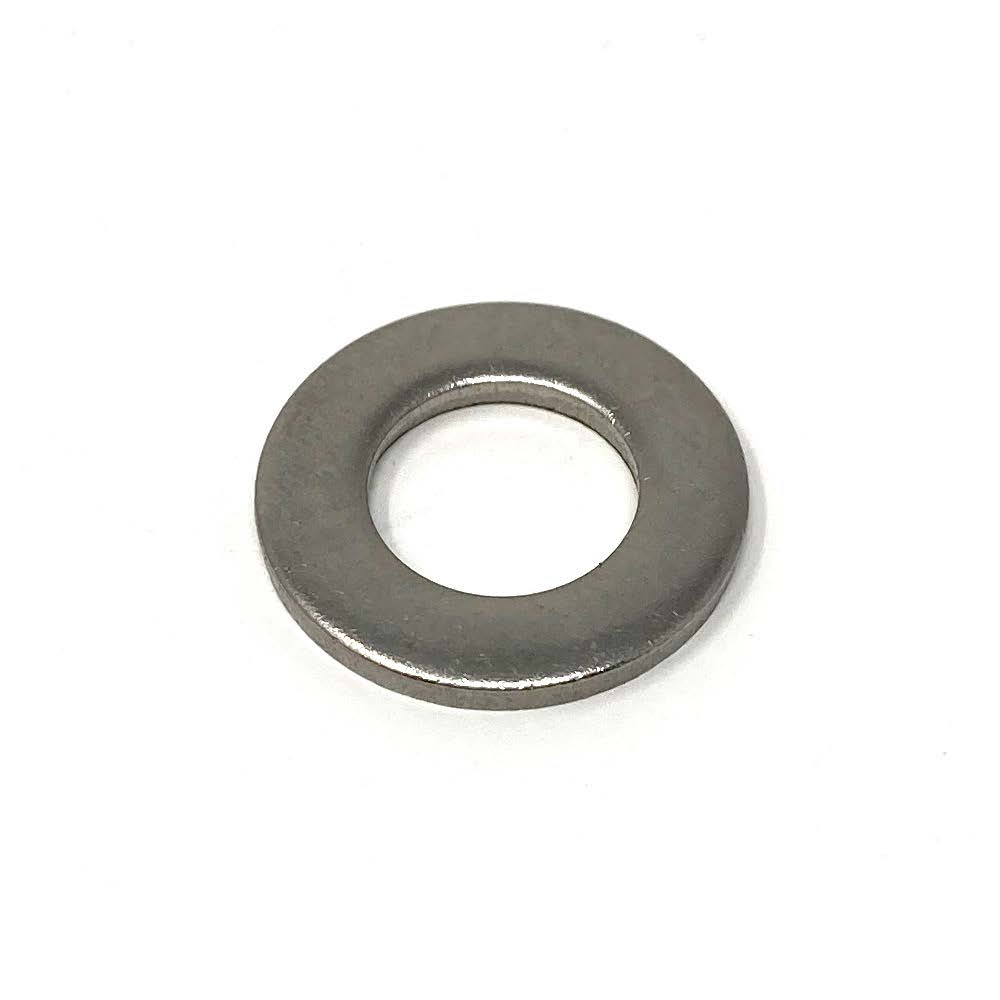

18377

Gear Console Washer_M8
Pos. 4410C
Material: 316
Specification / Size: 8mm, Pumphead Support
Notes: --

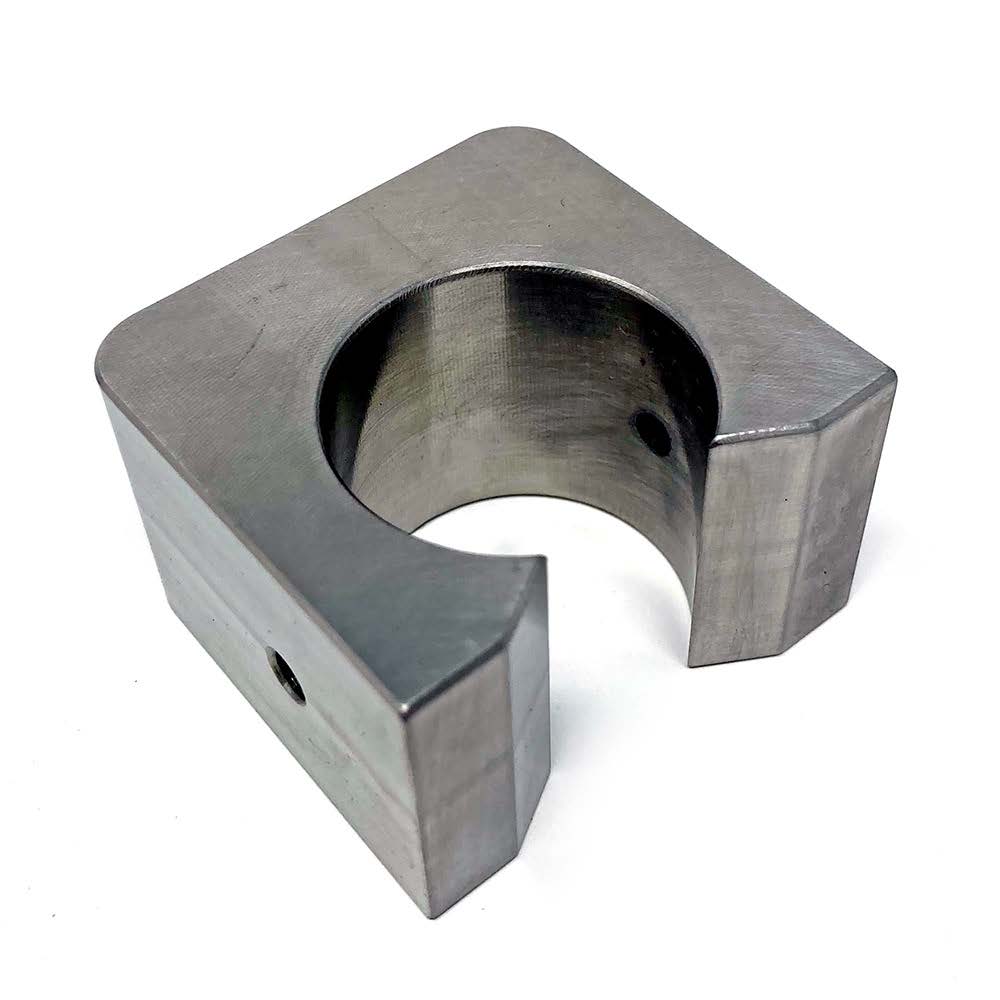

22217

Stop Bracket with Two Set Screws F#4
Pos. 4411
Material: 304
Specification / Size: Stop Bracket
Notes: --

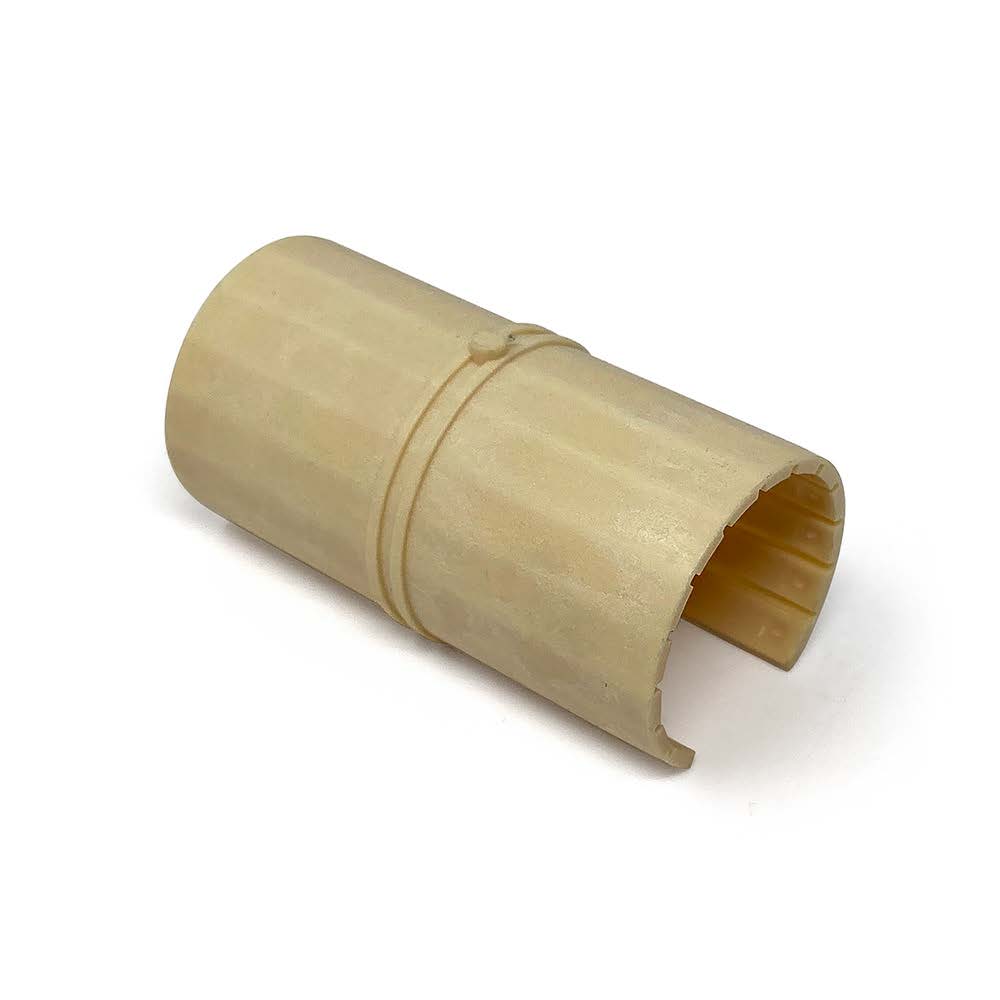

22244

Slider Housing Bearing Foil F#4
Pos. 4414A
Material: 304
Specification / Size: Slider Bearing Foil
Notes: --

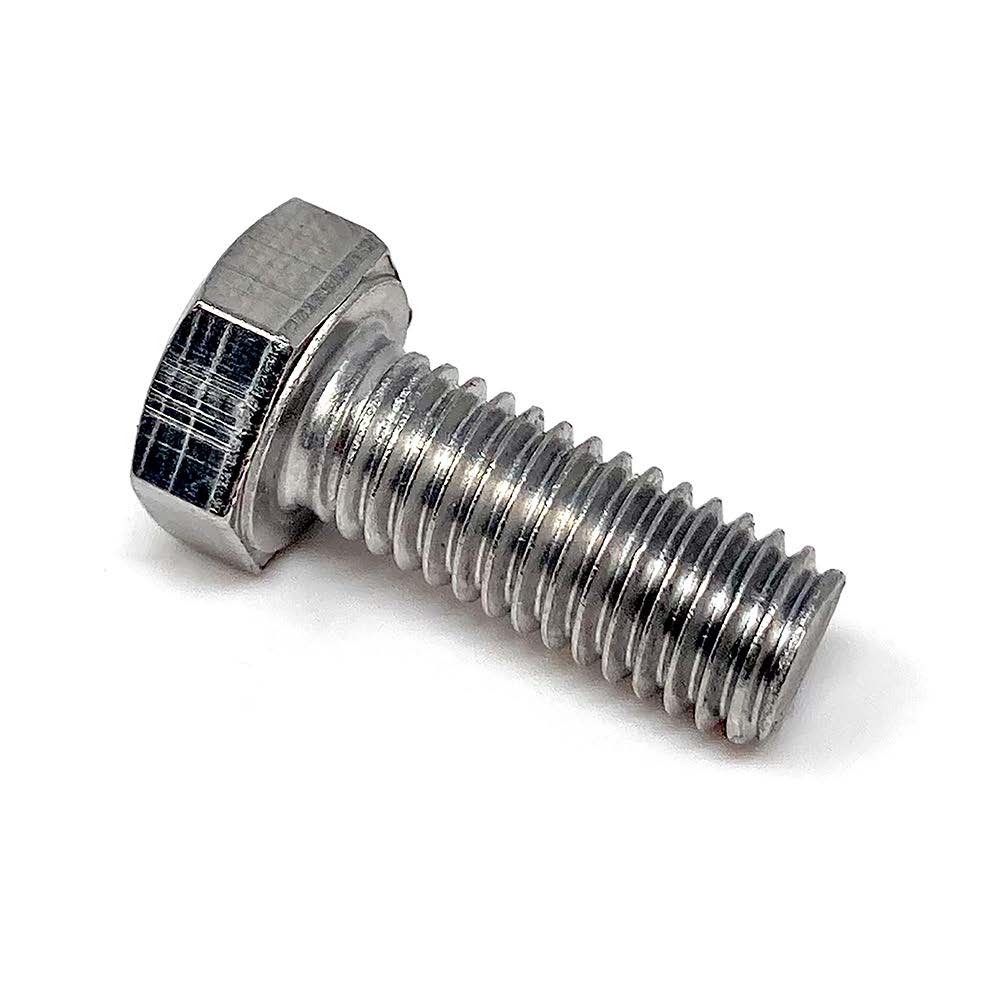

22242

Hex Head Screw_M6x20mm
Pos. 4414B
Material: 316
Specification / Size: 6mm, Length: 20mm
Notes: --

22223

Hex Head Screw_M6x20mm
Pos. 4414B
Material: 304
Specification / Size: 10mm, Height Adjuster
Notes: --

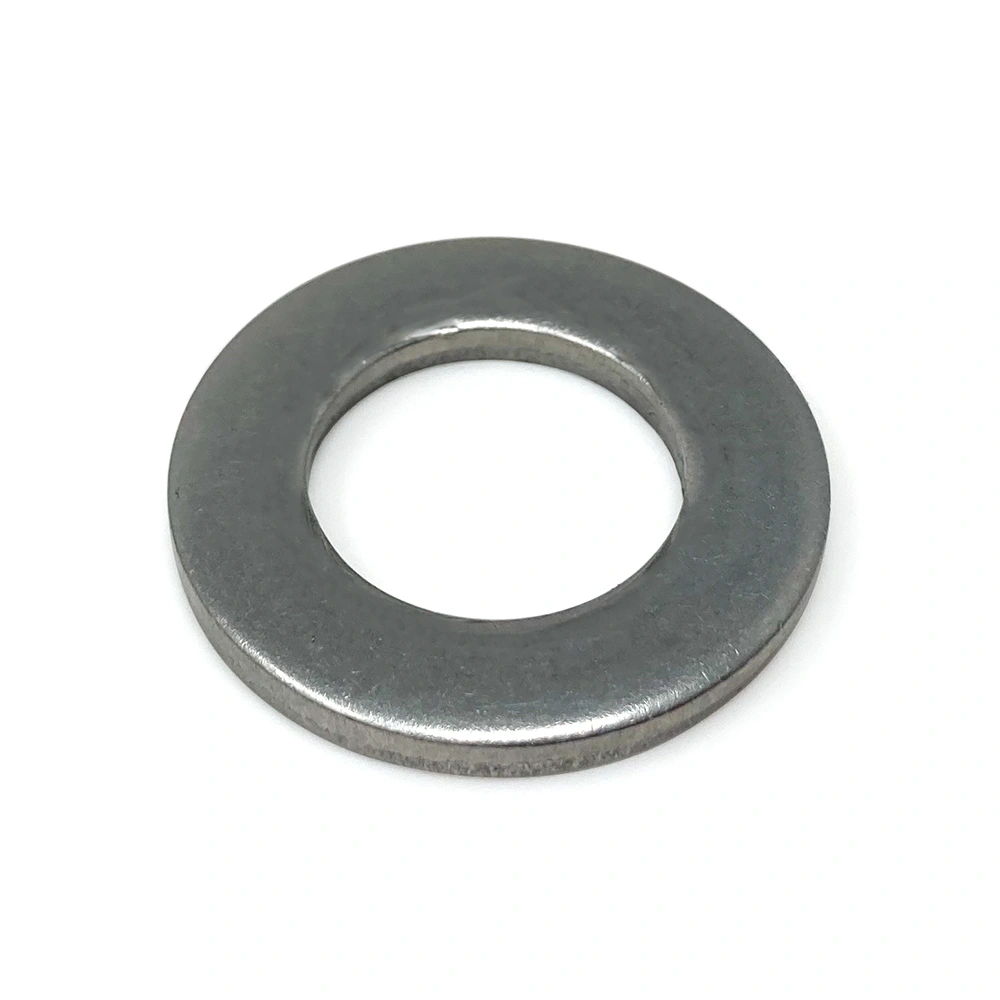

20319

Gear Conceole Washer M6
Position 4414C
Material: 304
ID: 6,4mm, OD: 12mm
Notes:--
