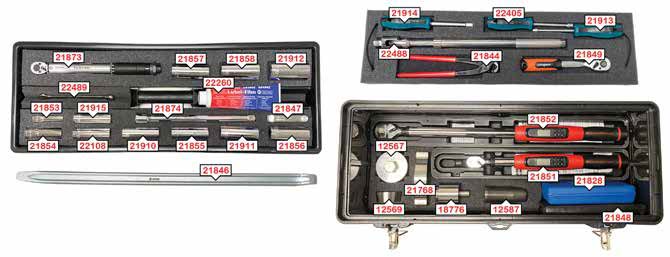

Complete Tool Box ML2_VT104_G7, G8+, NG
Maintenance Level 2
Material: Various
Specification / Size:
Notes: To replace a missing or damaged tool, simply place an order with PROCESSTEC, Inc. using the part numbers that are listed on the following pages.

Spindle Wrench_VT104, VT130_G7, G8, G9
Pos. 2180
Material: Aluminum
Specification / Size: T0038
Notes: To loosen and tighten Spindle Bolts

Pump Drive Shaft Locking Tool_G8, G9
Pos. 3000/2247
Material: 316
Specification / Size:
Notes:

Torque Wrench Large_G7, G8, G9
Pos.
Material:
Specification / Size: 1/2" drive, 30 -340 Nm
Notes:

Torque Wrench Small_G7, G8, G9
Pos.
Material:
Specification / Size: 1/4" drive, 2.5-25 Nm
Notes: For small torque application

Hex Nuts 1/2" Drive, 16mm
Pos. per Torque Table
NOTES: Operate on positions per chart.

Hex Nuts 1/2" Drive, 17mm
Pos. per Torque Table
NOTES: Operate on positions per chart.

Hex Nuts 1/2" Drive, 27mm
Pos. per Torque Table
NOTES: Operate on positions per chart.

Hex Nuts 1/2" Drive, 30mm
Pos. per Torque Table
NOTES: Operate on positions per chart.

Hex Nuts 1/2" Drive, 32mm
Pos. per Torque Table
NOTES: Operate on positions per chart.

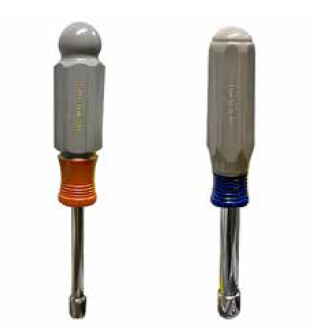

Hex Socket Screw Driver_G7, G8, G9
for Pos. see Notes
Material:
Specification / Size: 7 mm
Notes: 7mm used on Pos. 3532, 8mm used on Pos. 3002, 10mm used on Pos. 3533

Hex Socket Screw Driver_G7, G8, G9
for Pos. see Notes
Material:
Specification / Size: 8 mm
Notes: 7mm used on Pos. 3532, 8mm used on Pos. 3002, 10mm used on Pos. 3533

Hex Socket Screw Driver_G7, G8, G9
for Pos. see Notes
Material:
Specification / Size: 10 mm
Notes: 7mm used on Pos. 3532, 8mm used on Pos. 3002, 10mm used on Pos. 3533

Hex Socket Bits Set (13 Piece)
for Pos. 2247, 2248
Material: CSV
Specification / Size: 2mm to 14mm
Notes: Operate on positions per chart
For Pos. 1008, 2246, 2247, 2248, 2258

Pliers_G7, G8, G9
for Pos. 1183
Material: CSV
Specification / Size: 2mm to 14mm
Notes: Operate on positions per chart
For Pos. 1008, 2246, 2247, 2248, 2258

Feeler Gauge Metric_G7, G8, G9
Pos.
Material: 303
Specification / Size: DIN 910, G1/2"
Notes: Long blades to verify gaps in Spindles, Housing.

Set of Small Hooks for Removal of O-Rings_G7, G8, G9
Pos.
Material: 303
Specification / Size:
Notes: Operate on positions per chart

Breaker Wrench_G7, G8, G9
for Pos. 4410
Material: SS
Specification / Size: 1/2" Drive, 18" long
Notes:

Open Spanner (Wrench) 10mm_G7, G8, G9
for Pos. 3002
Material:
Specification / Size:
Notes:

Grease Tube_G7, G8, G9
for Various Elastomers

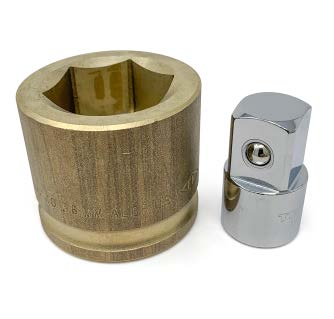

Brass Spindle Bolt Socket_VT104, VT130_G7, G8, G9
Pos. 2180
Material: Brass
Specification / Size:
Notes: To loosen and tighten Hex Head Spindle Bolts. Includes 1/2" to 3/4" Adapter.

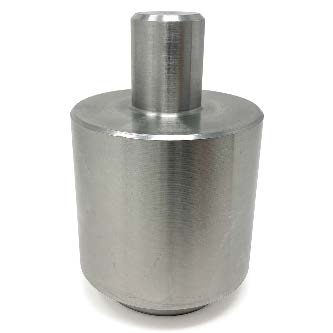

Mounting Cone Shaft Seal Ring Gear Housing_VT104_G7, G8, G9
Pos. 1010/1183
Material: 304
Specification / Size: T0047
Notes:

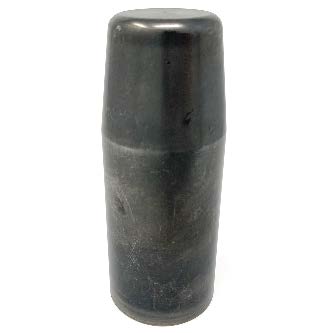

Press Fitting Mandrel Shaft Sealing Ring_VT130_G7, G8, G9
Pos. 1010
Material: 304
Specification / Size: T0082
Notes:

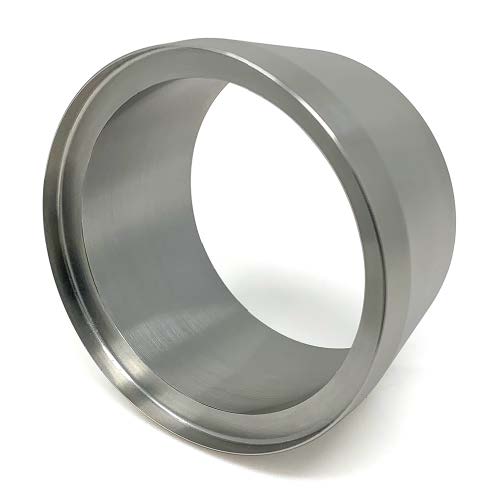

Mounting Cone Shaft Seal Ring Bearing Housing_VT104_G8, G9
Pos. 2322
Material: 304
Specification / Size: T0083
Notes: Mounting Cone for 104 NG

Mounting Cone Shaft Seal Ring Gear Housing_VT130_G7, G8, G9
for Pos. 1010/1183
Material: 304
Specification / Size:
Notes:

Mounting Cone Shaft Seal Ring Bearing Housing_VT130_G8, G9
Pos. 1010
Material: 304
Specification / Size: T0086
Notes:

Press Fitting Mandrel Shaft Sealing Ring_VT130_G7, G8, G9
for Pos. 1010
Material: 304
Specification / Size: T0077
Notes:
